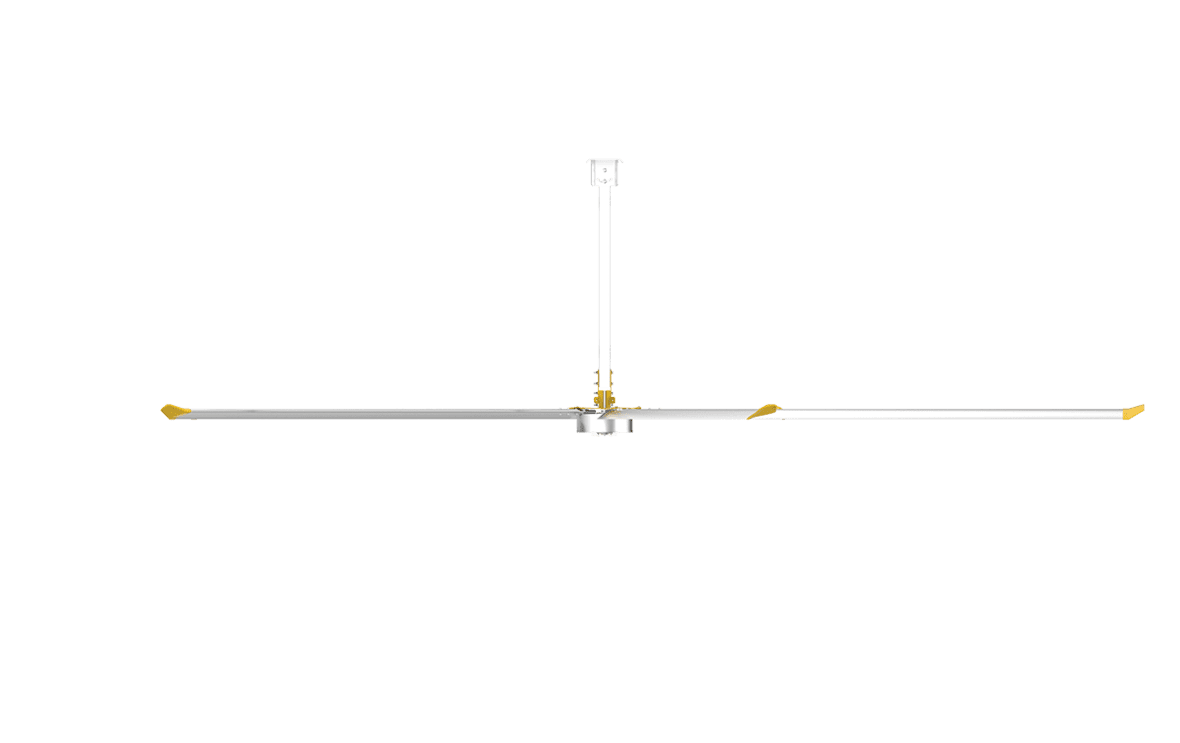

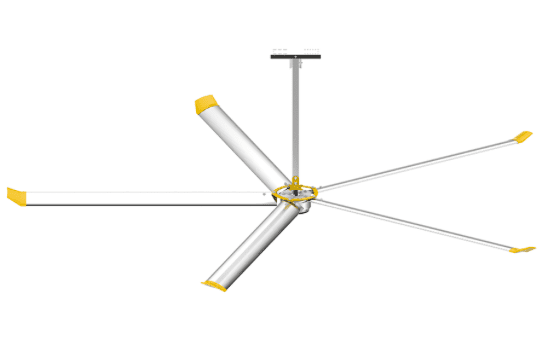

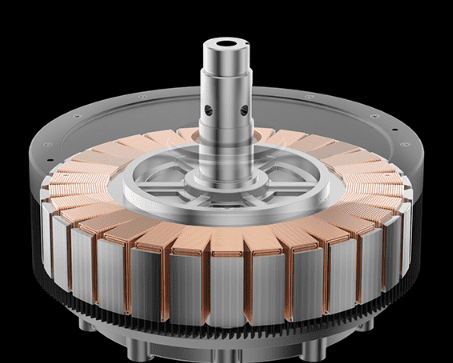

PMSM(Permanent Magnet Synchronous Motor) SD-OB series energy-saving industrial ceiling fan is a huge ceiling fan with a diameter from 18ft to 24ft (5.2m-7.2m)! The Airfoil Blades, manufactured by applying aerodynamic principles and advanced technology. It can drive a large amount of air with energy saving motor at 1.5KW/1.3kw/1.1kw/0.75kw.
| Model | |
|---|---|
| Blade Diameter | 24ft (7.3m) |
| Number of Blades | 5 |
| Max.Speed | 53rpm |
| Motor Power | 1.5kw |
| Fan Weight | 128kg |
| Noise | 45db |
| Power Supply Form | 380v or 220v |

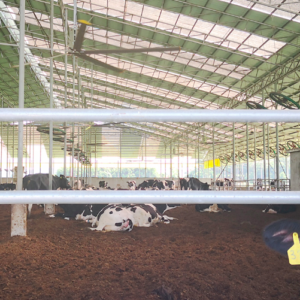

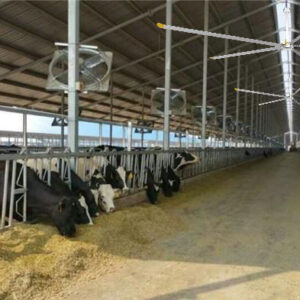

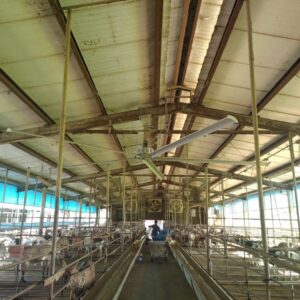

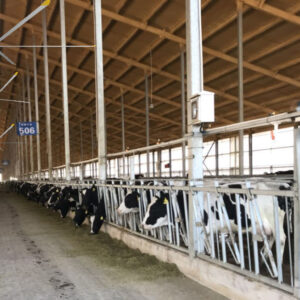

Large HVLS FAN (High-volume low-speed) ceiling fans can increase the air circulation speed in the animal body area, it is helpful to alleviate the harm of high temperature. The maximum length of the industrial ceiling fan blade is 7.3 meters, and the effective coverage area of each fan is more than 1,400 square meters.
The airflow formed by the fan blades is pushed from the top to the ground in a cone shape and flows horizontally to the ground, thus strengthening the air circulation in all directions and angles. The animal will feel the three-dimensional natural wind and achieve a good cooling effect.
6 main benefits we can get from HVLS ceiling fan for animal farm:

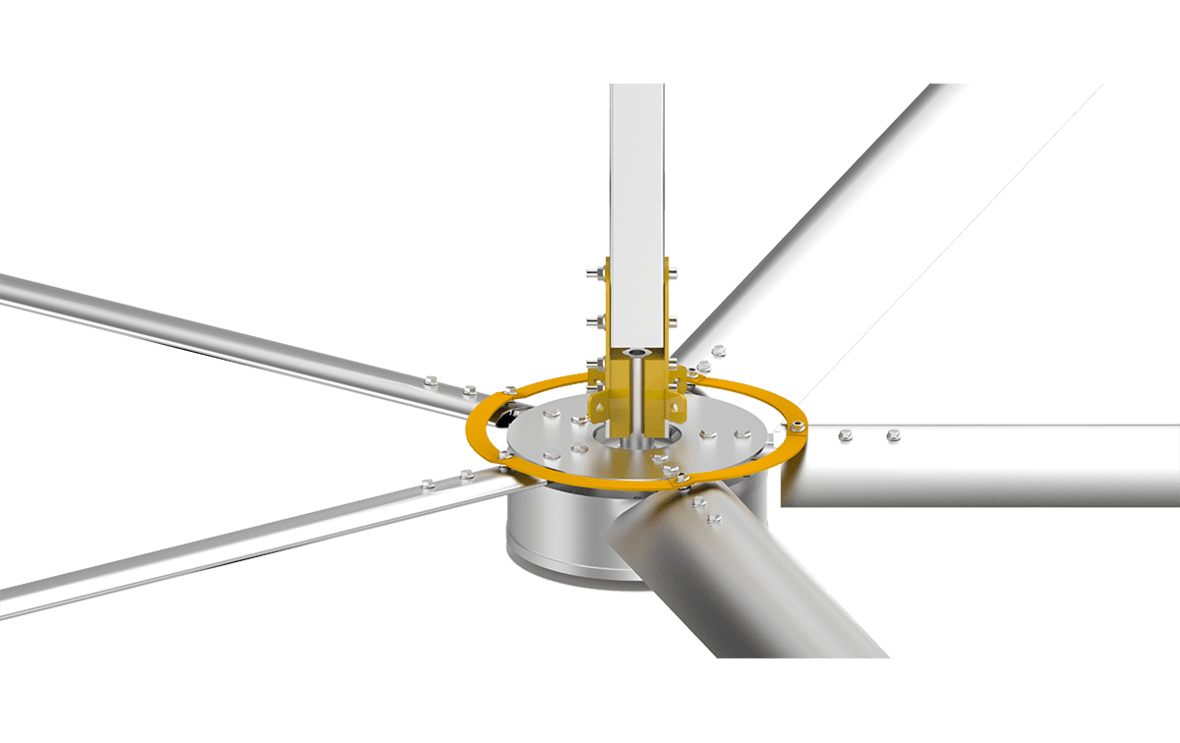

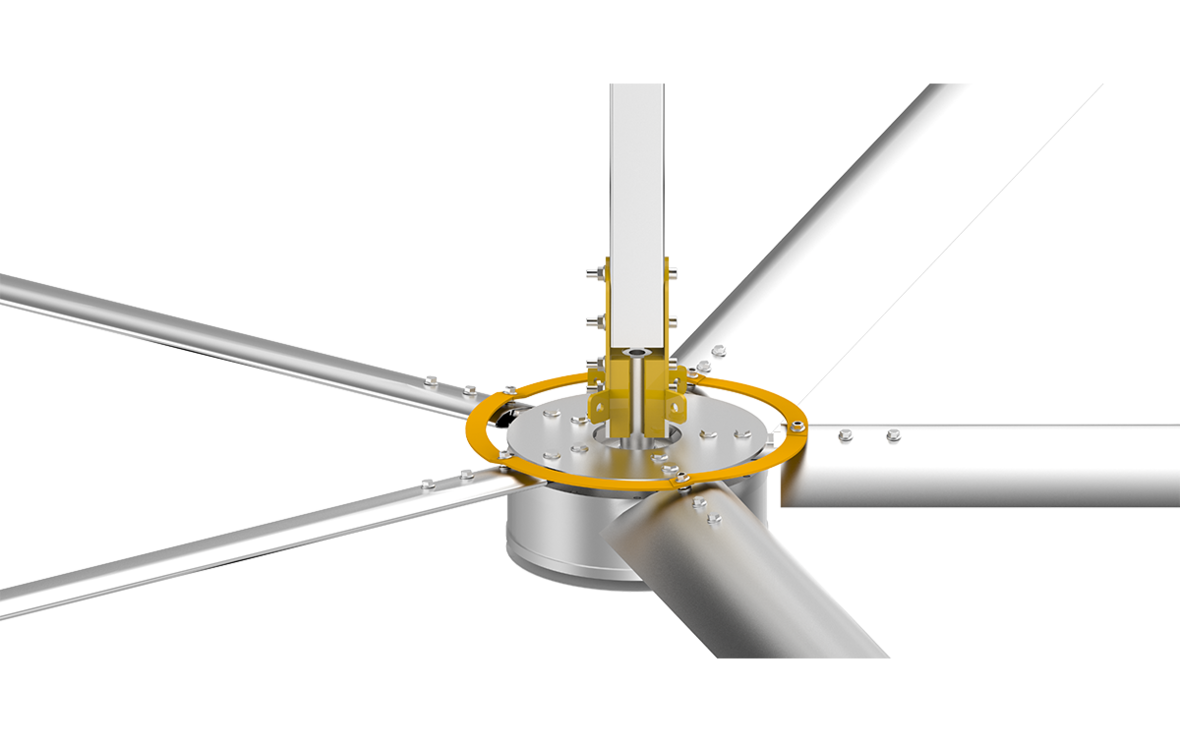

The hub made by 1500T hot forging, numerical control machining and CNC precise machining. Forging is able to confirm the consistency of metal structure, which can keep the inside structure and the outside shape of forged pieces consistent. Complete streamline structure of the metal confirms the best mechanical property of the hub. By CNC machining, the precision tolerance has been controlled in 100um, which guarantees the precise dynamic balance of the hub.
Top level electrical configuration in HVLS industry, famous brand electrical components, with building safety protection module which will shut down the output automatically in case of some accidents.
Control system box passed anti-creeping tests which shields electromagnetic interference effectively. Protection level is IP55, passing UL, EMC,LVD, ROHS certificates.

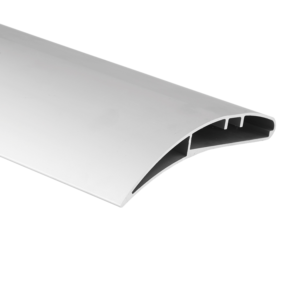

Adopt imported special high strength aircraft grade magnalium, PVFD processed in surface,and aerodynamics fan blade design.
Made of high quality aviation aluminum magnesium alloy, anodized with T6 heat treatment,strengthening support system inside,which increases the strength of fan blade and avoids the drop of fan blade tail and the loss and fatigue of fan blade to connecting pieces completely.
1. Suitable for any building with a ceiling height of 3.5 meters or more.
2. The load bearing capacity of the roof structure should be more than 150kg, the max. total running weight of the fan equipment is about 125kg.
3. Make sure that the fan is installed without chandeliers or other obstructions.
4. It’s not recommend for installation at the site with heat sources or lampblack occasion.
